Hygger [ HG951-14W-US ]
Hygger Aquarium Mini DC Wave Maker
Free Shipping & Return On All Orders!
- LED display controller
- Silent indoor use
- Magnetic mount suction
- Adjustable power
- Adjustable wave mode
- Mini high power circulation pump
- Magnetic mount suction
- Description
- Specification & Package
- Instructions
- FAQ

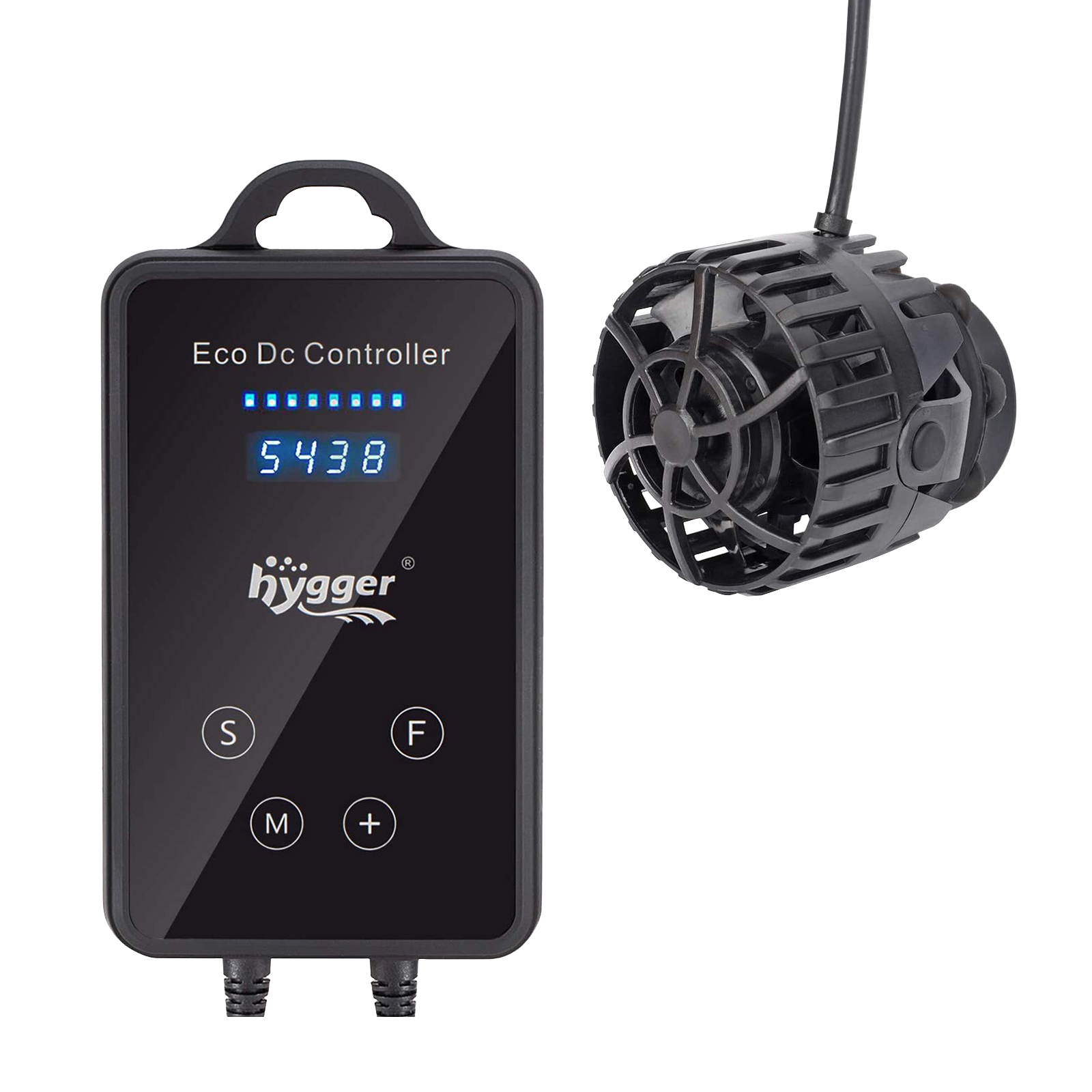

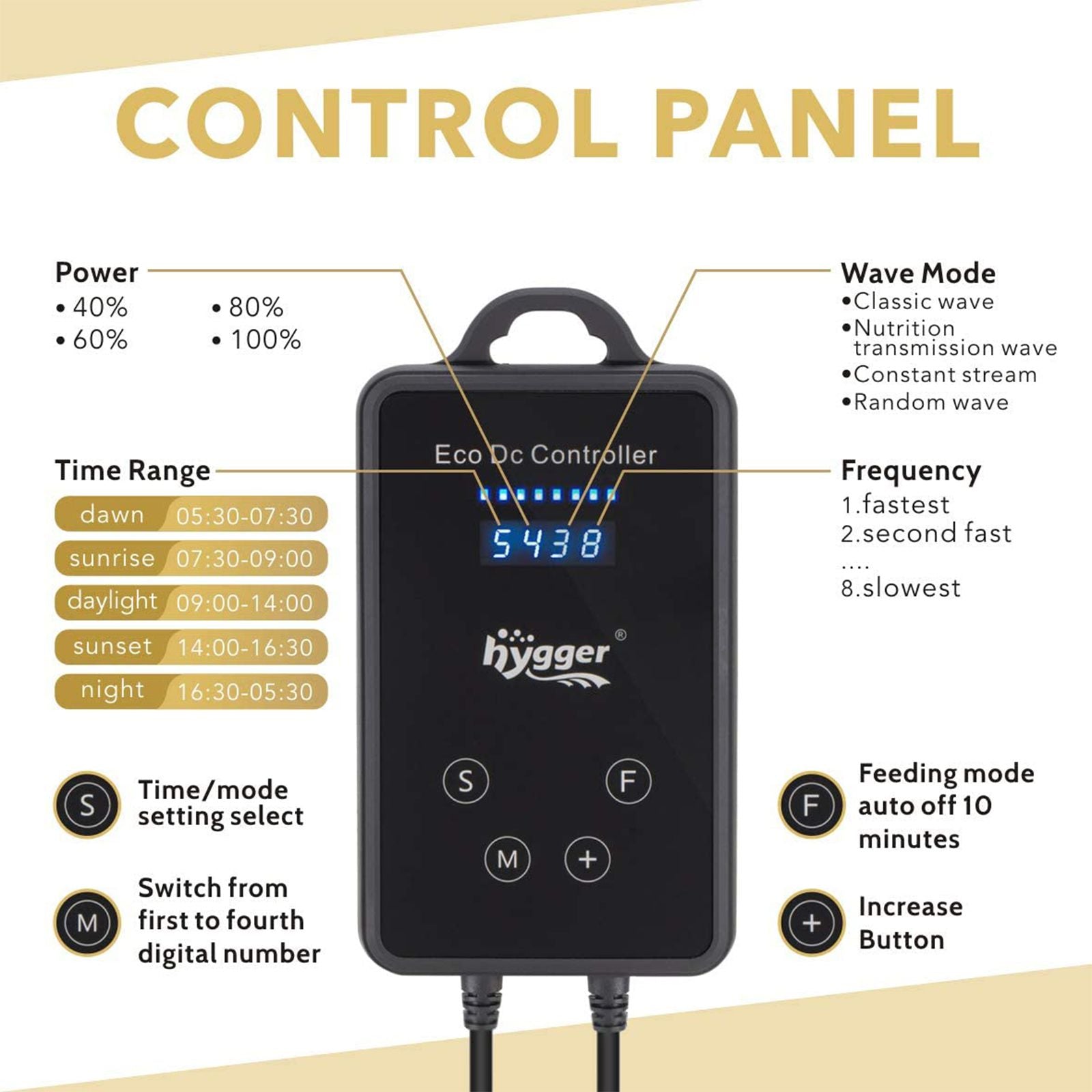

Smart LED Display Controller
You can customize the time range, power, wave mode, frequency, and more with the controller. Button S means "Select" which is used to select function settings. Button M means "Move" which is used to switch digit number from the first one to the fourth one. Button "+" means increase which is used to increase the number that you are setting. Button F means "Feed mode" where the pump will shut off for 10 minutes rest.
The first digit on the controller indicates the time range. 5 options are available.
1: Dawn (05:30-07:30)
2: Sunrise (07:30-09:00)
3: Daylight (09:00-14:00)
4: Sunset (14:00-16:30)
5: Night (16:30-05:30)
The second digit indicates the power intensity. 4 options are available.
1: 40%, the power reduced down to 40%.
2: 60%, the power reduced down to 60%.
3: 80%, the power reduced down to 80%.
4: 100%, power at 100%.
The third digit indicates the wave mode. 4 modes are available.
1: Classic wave.
2: Nutrition transmission wave.
3: Constant stream where frequency can’t be adjusted.
4: Random wave, the random working of the other three modes. So the lights status is per the actual mode status. The power and frequency can not be adjusted.
The fourth digit indicates the frequency. 8 levels of frequency are available.
1: The fastest
2: The second fastest
....
8: The slowest

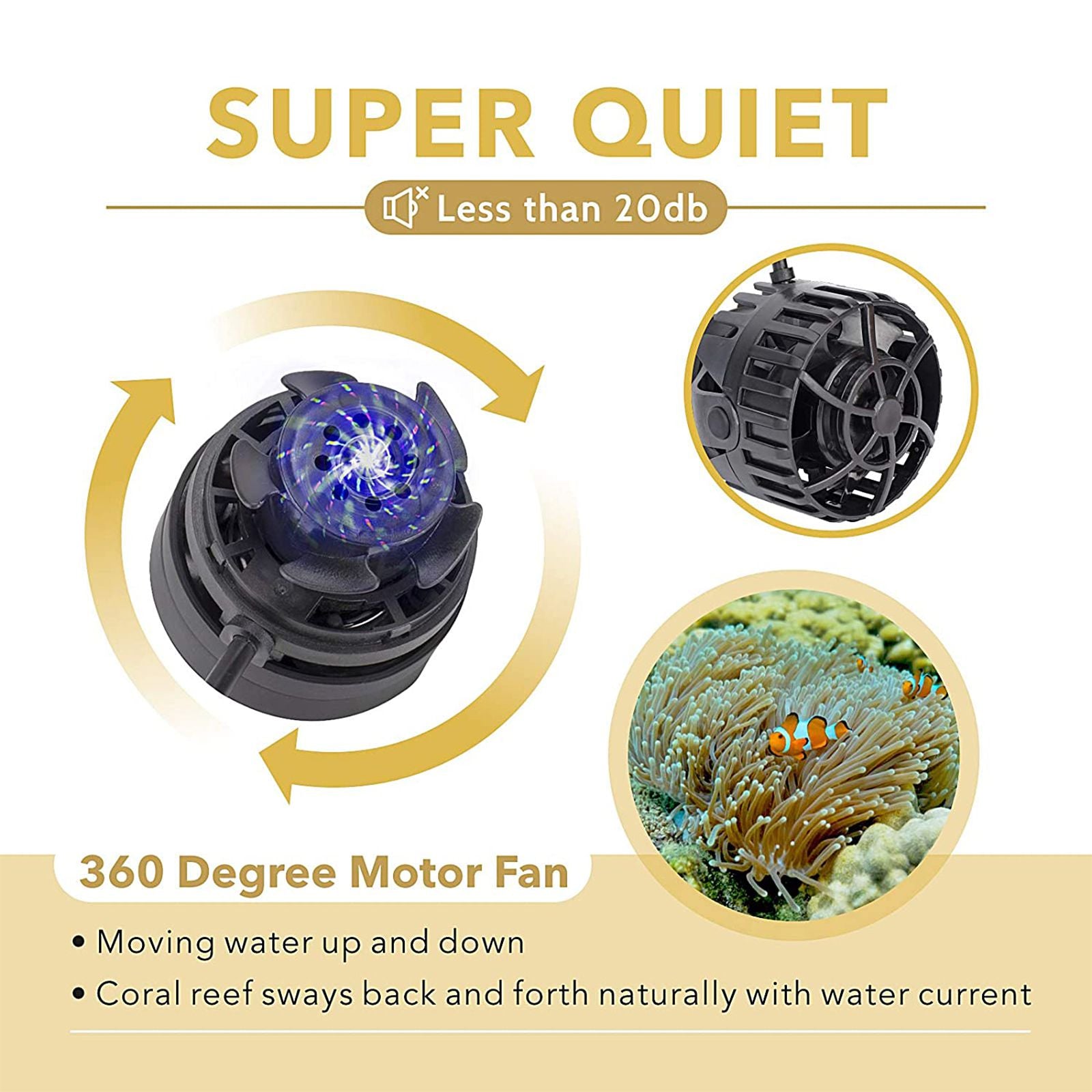

Quiet Operation & Stable Position
This controllable DC powered wave maker comes with energy efficient magnetic propeller and motor that delivers circulating water quietly to improve water quality by eliminating dead spots.

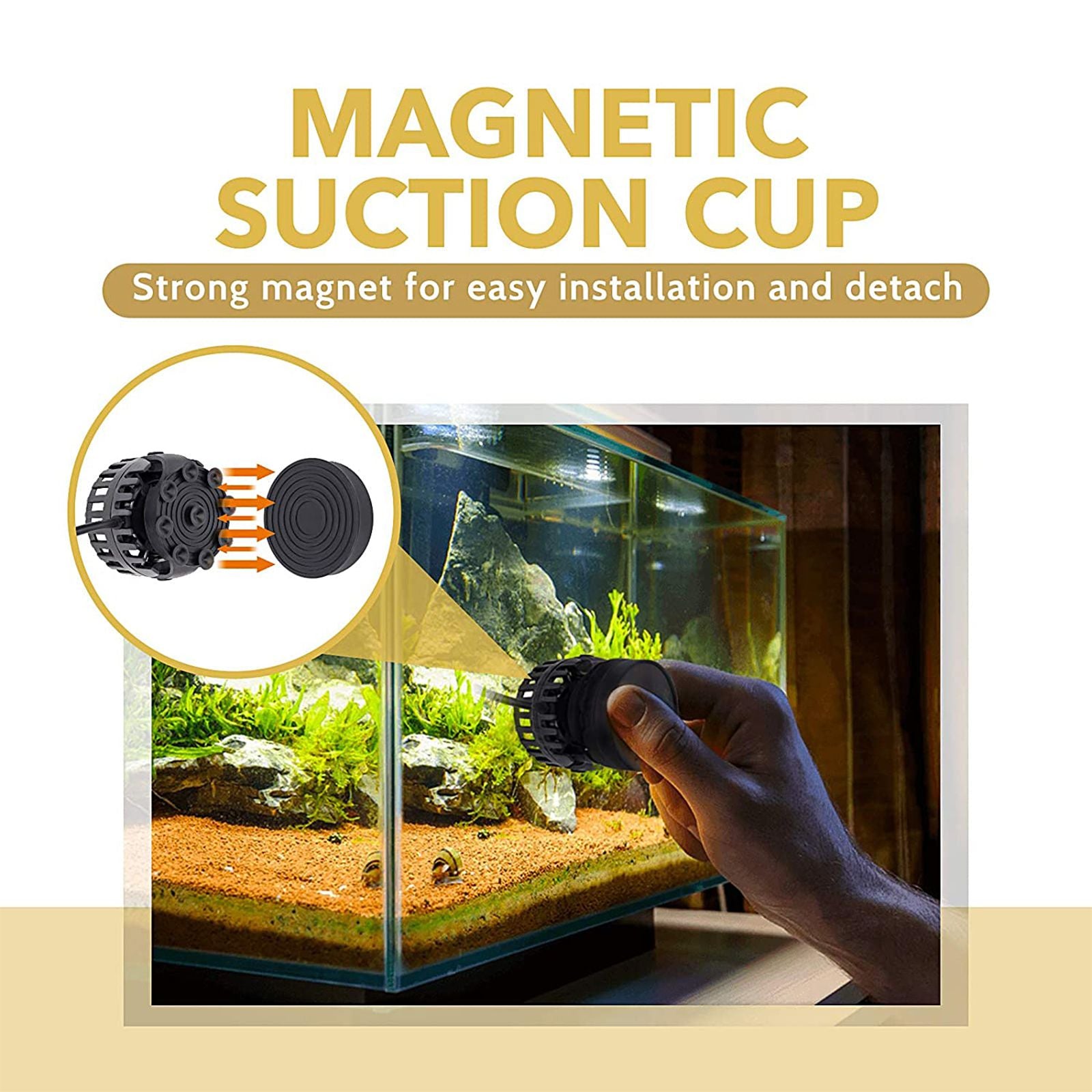

The strong magnetic suction cup base allows you to position it anywhere freely and firmly. Also, it makes the installation, adjustments, and removal a snap.
Some Tips and Troubleshooting
1. When power head runs reversely, it means something twist around inside, you need to take the impeller out and clean it up.
2. Error code 7 means something stuck the impeller. You need to unplug it and take it apart to prod the motor fan in few circles, then restarts.
3. Too shallow water could also cause error 7. So remember to place the pump 6 inches lower than the water surface.
4. In any of the following cases, the controller will show "err".
Case 1: The wave maker never immerse in water and is running in dry condition.
Case 2: The wave maker is not connected to the controller.
Case 3: The wave maker stuck.
Case 4: The controller or adapter is wet.
Case 5: Disassembly the controller or adapter improperly.
Product Parameters
| Model | Max Flow Rate | Applicable Tank Size | Tank Thickness | Max Power | Min Power | Voltage | Size |
| HG-951-14W | 1600 GPH | 3-25 Gallons (<18 inches long) | <0.5 inch | 14 W | 3 W | DC 12 V | 1.8 x 1.8 x 2 (inch) |
| HG-951-20W | 2600 GPH | 26-55 Gallons (<23 inches long) | <0.6 inch | 20 W | 6 W | DC 24 V | 2.4 x 2.4 x 2.6 (inch) |

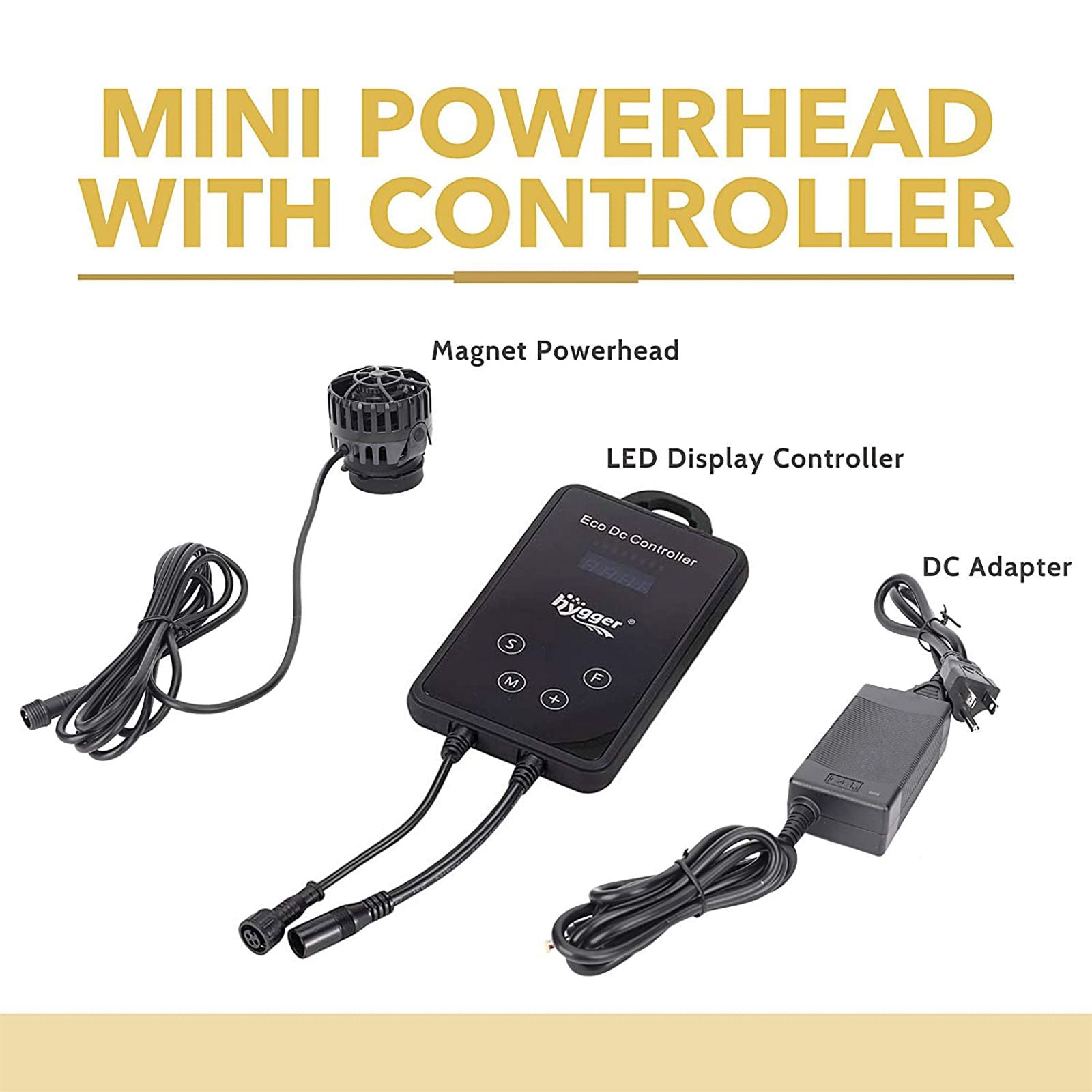

Packing List
- DC Adapter x1
- Mini Magnetic Power Head x1
- LED Display Controller x1
- User Manual x1
